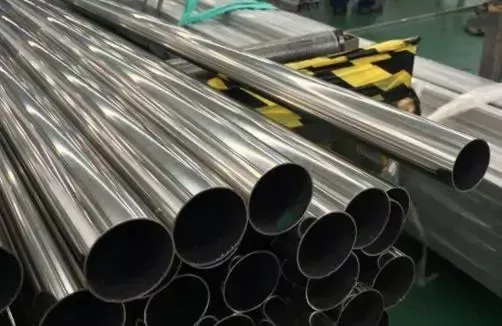

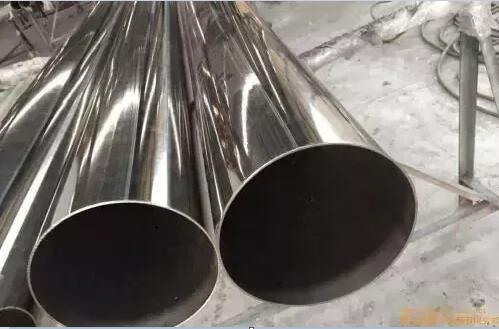

316L Decoration Stainless Steel Tube

316L stainless steel decorative pipe belongs to industrial materials. The products are widely used in chemical industry, construction, bridge, aerospace, mechanical hardware, medical treatment, decoration, medical fitness supplies, furniture, tableware manufacturing, liquid transportation, automobile manufacturing, water supply and other industries

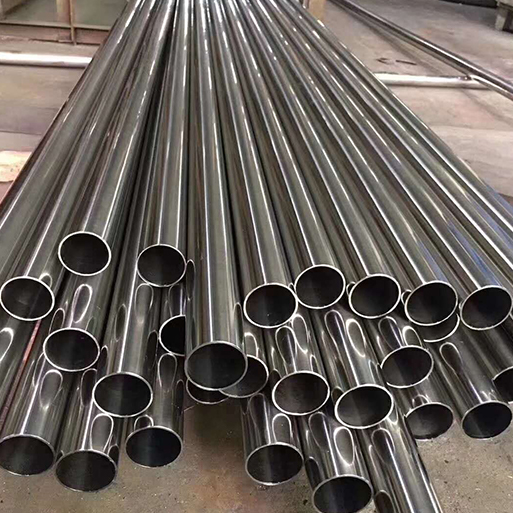

316L welded stainless steel tube

316L stainless steel welded pipe is a kind of hollow long circular steel, which is widely used in petroleum, chemical, medical, food, light industry, mechanical instruments and other industrial transportation pipelines and mechanical structural components. In addition, when the bending and torsional strength are the same, the weight is lighter, so it is also widely used in manufacturing mechanical parts and engineering structures. It is also often used in the production of conventional weapons, barrels, shells, etc.

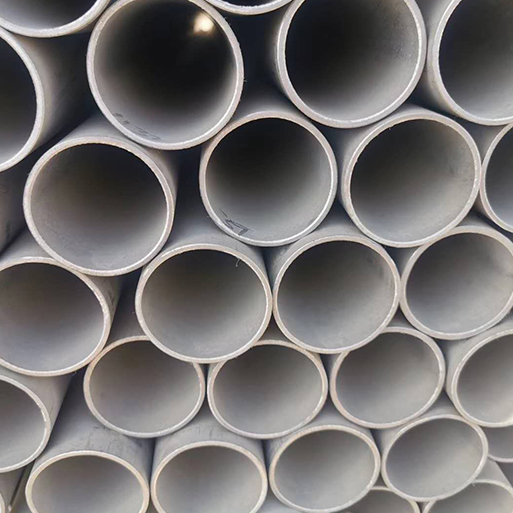

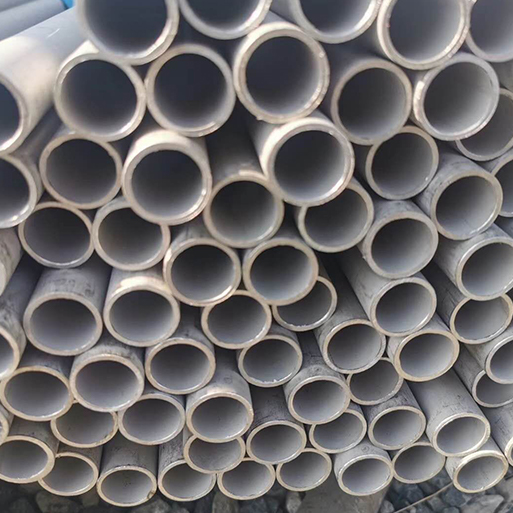

316L Seamless Stainless Steel Tube

316L Stainless steel seamless pipe is a kind of long steel with hollow section and no joint around it.The process of this product determines its limited performance. Generally, the precision of seamless steel tube is low: uneven wall thickness, low brightness inside and outside the tube, high cost of length fixing, and there are pits and black spots on the inside and outside surface which are not easy to remove; its detection and shaping must be off-line processed. Therefore, it embodies its superiority in high pressure, high strength and mechanical structure materials.

Widely used in petroleum, chemical, medical, food, light industry, mechanical instrumentation and other industrial transport pipelines and mechanical structural components. In addition, when the bending and torsional strength are the same, the weight is lighter, so it is also widely used in manufacturing mechanical parts and engineering structures. It is also often used in the production of conventional weapons, barrels, shells and so on

Chemical composition and Physical property

Grade	C(%)	Si(%)	Mn(%)	Cr(%)	P(%)	S(%)	N（%)	Ni(%)	Cu(%)
316L	≤0.03	≤1.00	≤2.00	16.00-18.00	≤0.045	≤0.03	≤0.10	10-14	---

Grade	TS(Mpa)	YS(Mpa)	EL(%)
316L	≥485	≥170	≥30

Standard specifications for stainless steel pipe

Inch	DN (mm)	OD (mm)	SCH5S	SCH10S	SCH10	SCH20	SCH30	SCH40	SCH60	SCH80	SCH100	SCH120	--
1/8	DN6	10.3		1.24				1.73		2.42
1/4	DN8	13.7		1.65				2.24		3.02
3./8	DN10	17.1		1.65				2.31		3.2
1/2	DN15	21.3	1.65	2.11				2.77		3.73
3/4	DN20	26.7	1.65	2.11				2.87		3.91
1	DN25	33.4	1.65	2.77				3.38		4.55
1 1/4	DN32	42.2	1.65	2.77				3.56		4.85
1 1/2	DN40	48.3	1.65	2.77				3.68		5.05
2	DN50	60.3	1.65	2.77				3.91		5.54
2 1/2	DN65	73.0	2.11	3.05				5.16		7.01
3	DN80	88.9	2.11	3.05				5.49		7.62
3 1/2	DN90	101.6	2.11	3.05				5.74		8.08
4	DN100	114.3	2.11	3.05				6.02		8.58		11.13
5	DN125	141.3	2.77	3.4				6.55		9.53		12.7
6	DN150	168.3	2.77	3.4				7.11		10.97		14.27
8	DN200	219.1	2.77	3.76		6.35	7.04	8.18	10.31	12.7	15.09	18.26
10	DN250	273.1	3.40	4.19		6.35	7.8	9.27	12.7	15.09	18.26	21.44
12	DN300	323.9	3.96	4.57		6.35	8.38	10.31	14.27	17.48	21.44	25.4
14	DN350	355.5	3.96	4.78	6.35	7.92	9.53	11.13	15.09	19.05	23.83	27.79
----
