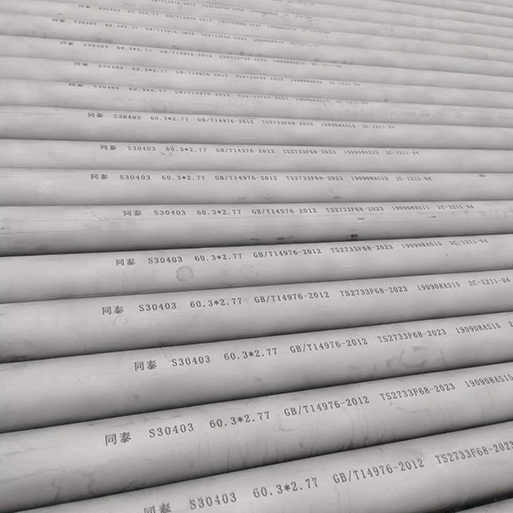

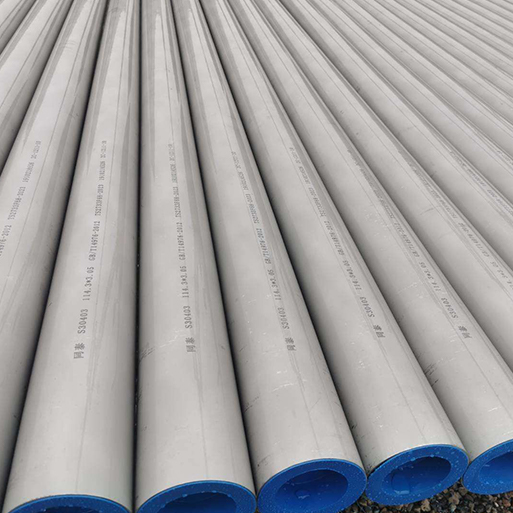

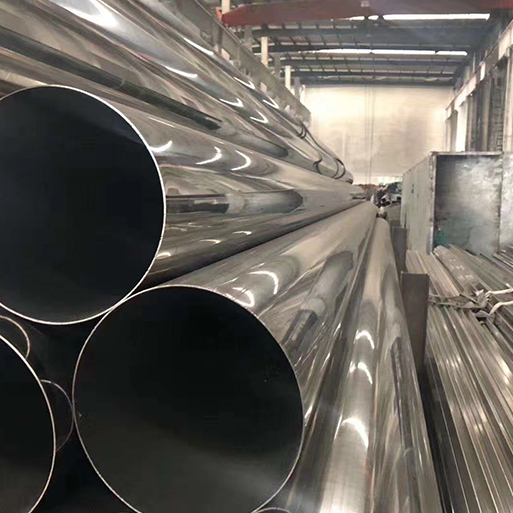

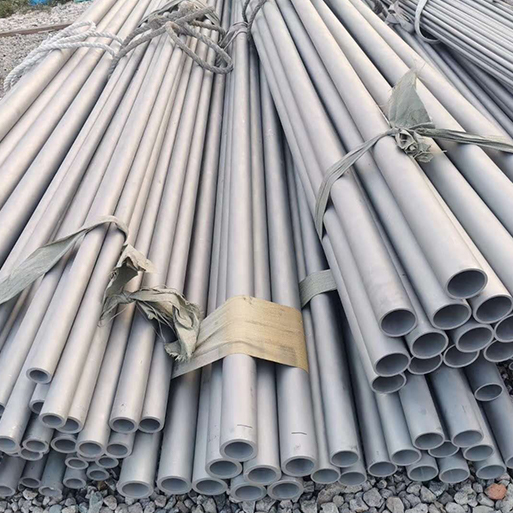

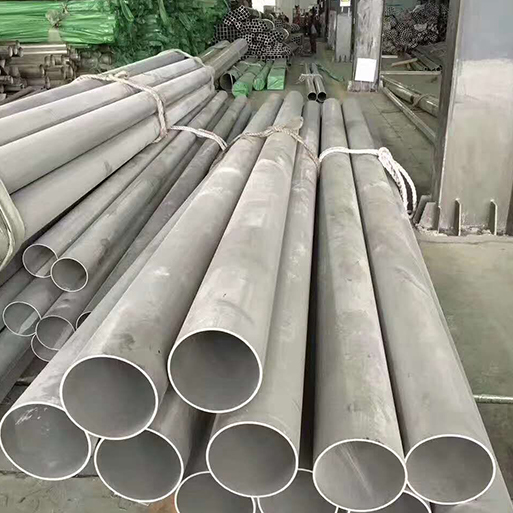

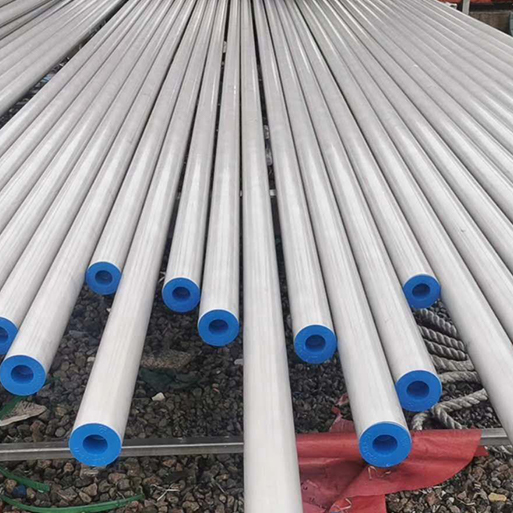

304L stainless steel pipe belongs to the international stainless steel marking method. 304L stainless steel pipe-S30403 (American AISI, ASTM) 304L corresponding to the Chinese grade is 00Cr19Ni10, characteristics and uses: steel with lower carbon content than 0Cr19Ni9, superior resistance to intergranular corrosion, for parts without heat treatment after welding.

304L stainless steel pipe 18Cr-8Ni- low carbon is a low-C 304 steel. Under normal conditions, its corrosion resistance is similar to that of 304 steel, but after welding or stress relief, its resistance to intergranular corrosion is excellent; In the case of heat treatment, it can also maintain good corrosion resistance, and the use temperature is -196℃~800℃. It is applied to outdoor machines in the chemical, coal, and petroleum industries that require high grain boundary corrosion resistance, heat-resistant parts for building materials and parts with difficult heat treatment.

Chemical composition and Physical property

Grade	C(%)	Si(%)	Mn(%)	Cr(%)	P(%)	S(%)	N（%)	Ni(%)	Cu(%)
304L	≤0.03	≤1.00	≤2.00	18.00-20.00	≤0.035	≤0.03	≤0.10	8-12	-

Grade	TS(Mpa)	YS(Mpa)	EL(%)
304L	≥480	≥175	≥40

Standard specifications for stainless steel pipe

Inch	DN (mm)	OD (mm)	SCH5S	SCH10S	SCH10	SCH20	SCH30	SCH40	SCH60	SCH80	SCH100	SCH120	--
1/8	DN6	10.3		1.24				1.73		2.42
1/4	DN8	13.7		1.65				2.24		3.02
3./8	DN10	17.1		1.65				2.31		3.2
1/2	DN15	21.3	1.65	2.11				2.77		3.73
3/4	DN20	26.7	1.65	2.11				2.87		3.91
1	DN25	33.4	1.65	2.77				3.38		4.55
1 1/4	DN32	42.2	1.65	2.77				3.56		4.85
1 1/2	DN40	48.3	1.65	2.77				3.68		5.05
2	DN50	60.3	1.65	2.77				3.91		5.54
2 1/2	DN65	73.0	2.11	3.05				5.16		7.01
3	DN80	88.9	2.11	3.05				5.49		7.62
3 1/2	DN90	101.6	2.11	3.05				5.74		8.08
4	DN100	114.3	2.11	3.05				6.02		8.58		11.13
5	DN125	141.3	2.77	3.4				6.55		9.53		12.7
6	DN150	168.3	2.77	3.4				7.11		10.97		14.27
8	DN200	219.1	2.77	3.76		6.35	7.04	8.18	10.31	12.7	15.09	18.26
10	DN250	273.1	3.40	4.19		6.35	7.8	9.27	12.7	15.09	18.26	21.44
12	DN300	323.9	3.96	4.57		6.35	8.38	10.31	14.27	17.48	21.44	25.4
14	DN350	355.5	3.96	4.78	6.35	7.92	9.53	11.13	15.09	19.05	23.83	27.79
----
